16 pcs of Dia. 700mm crane wheels exported to Norway

May 18, 2016

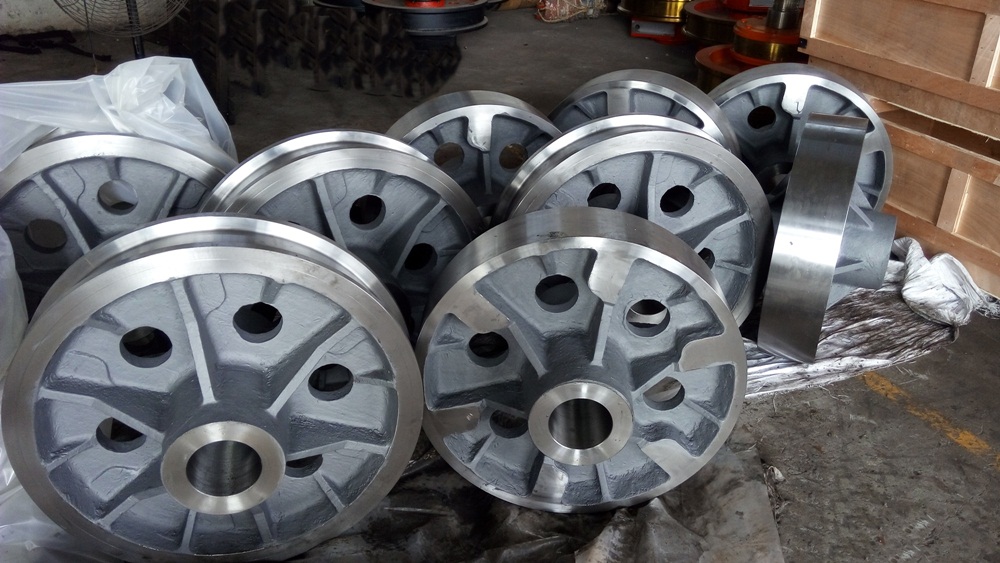

D700 CRAME WHEEL

16 pcs of Dia. 700mm crane wheels exported to Norway

  • 4 pcs of Dia. 700mm Crane wheels with Flanges and holes
  • 4 pcs of Dia. 700mm Crane wheels with Flanges
  • 8 pcs of Dia. 700mm Crane wheels without Flanges

Detailed specifications:

  • Wheel material: Casted 42Crmo;
  • Ring material: CuSn5Zn5Pb5 (ZQSn5-5-5)
  • Bearing material: CuSn5Zn5Pb5 (ZQSn5-5-5)
  • Processing technology: Casted
  • Hardness: HRC 48-52(Or HB 450-500)
  • Akv (J) 63

The progress:

On April 26, 2016, we got the inquiry of crane wheels from our new client in Norway. This client is one professional manufacturer of port cranes, so these wheels are used to be equipped with the port cranes.

According to customer's requirement, we do the Physical Performance test, NDT test and 3rd party inspection for my client. Although the customer's requirements are very strict, we still follow the customer's drawings to complete the wheels required by the customer. Below I list some photos to show the productive process.

Chemical sampling 1

 Chemical Sampling

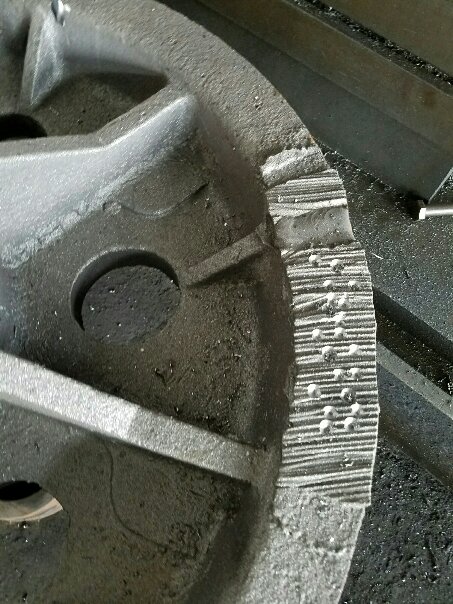

Chemical sampling 2

 Chemical Sampling

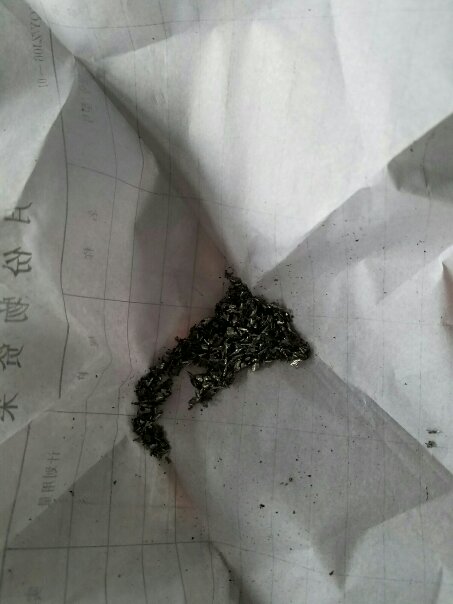

Chemical sampling 3

 Chemical Sampling

Blank size Measurement 2

Blank Size Measurement

Blank size Measurement 1

Blank Size Measurement

Measuring rod 1

Measuring rod

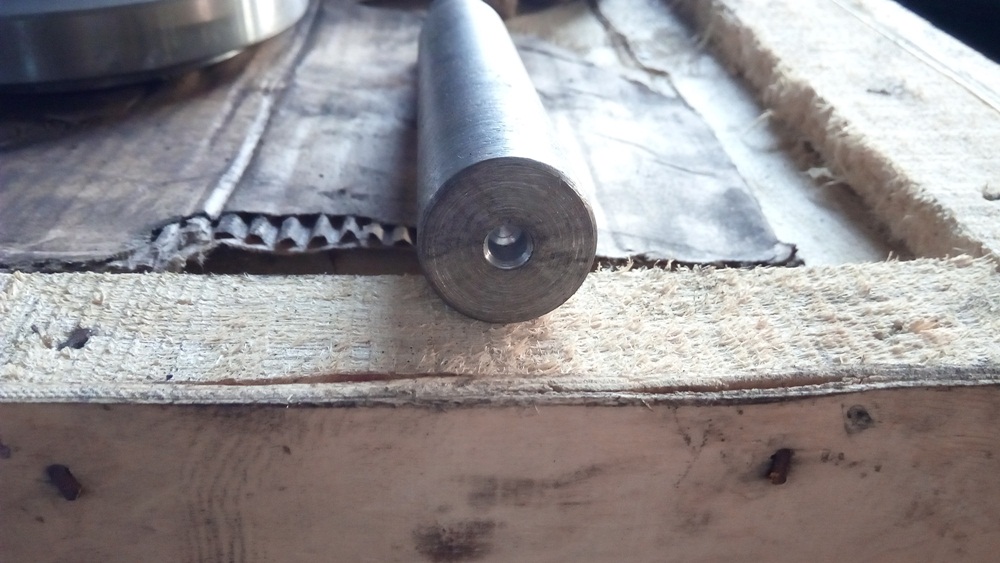

Measuring rod 2

Measuring rod

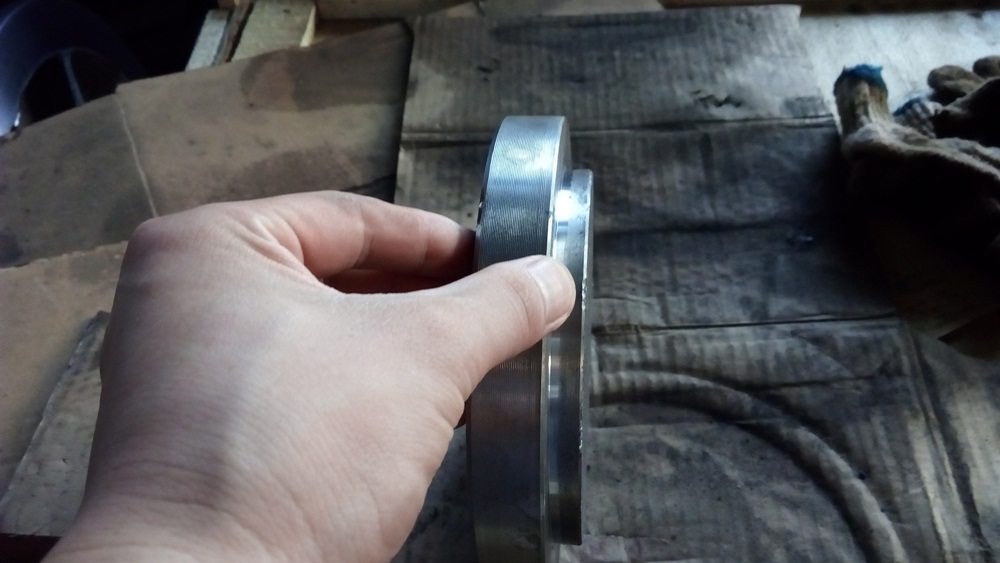

Measuring rod 3

Measuring rod

polish 1

Polish

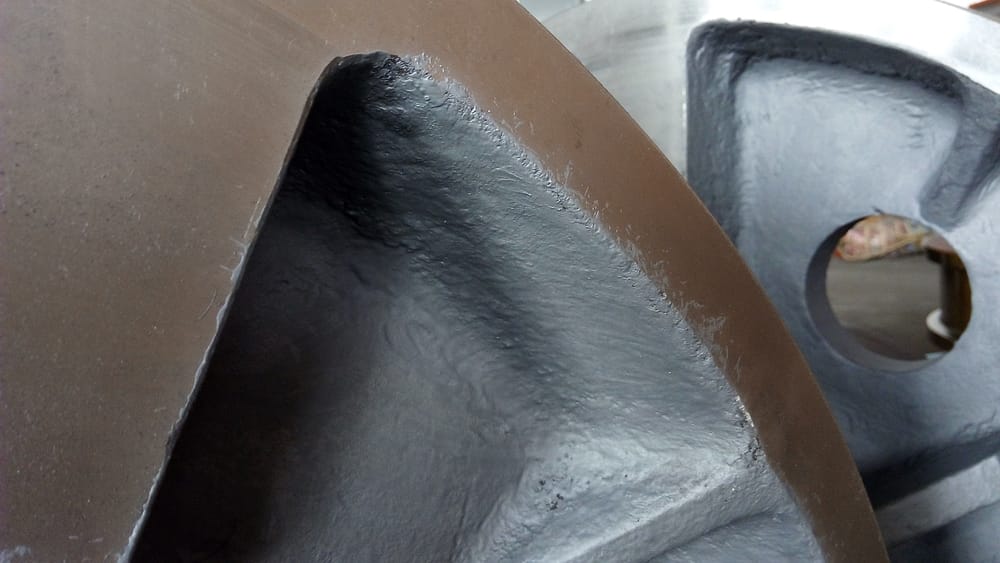

polish 2

Polish

More Photos of Finished Products and Package and shipping:

D700 CRANE WHEEL 2

D700 Crane wheel

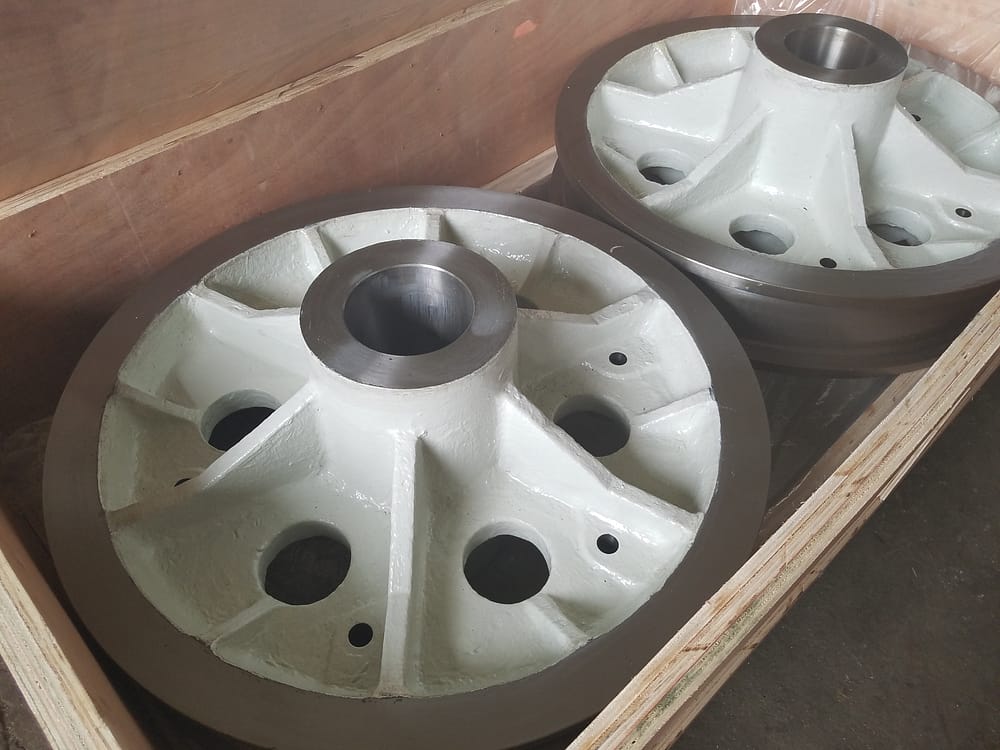

D700 CRANE WHEEL 1

D700 Crane wheel with holes

Package and shipping 1

Package

Package and shipping 2

Shipping

Key words: crane wheel,Europe
